How Tiaano Manufactures High-Performance Platinum Platinised Rod Anodes in India

In demanding marine and industrial environments, catastrophic metal loss caused by electrochemical corrosion poses a constant threat to critical infrastructure. Standard Impressed Current Cathodic Protection (ICCP) systems frequently fail when conventional anode materials undergo rapid consumption, passivation breakdown, or structural degradation under high operating current densities. Tiaano solves these complex durability challenges by manufacturing high-performance Platinised Rod, engineered specifically for extreme-duty Cathodic Protection applications.

The Corrosion Challenge in High-Severity Environments

Unprotected steel structures in seawater, brackish estuarine zones, deep well groundbeds, and aggressive soil environments experience accelerated electrochemical degradation. Conventional anodes often suffer from low breakdown voltage limits, leading to premature insulation failure and costly operational downtime. Ensuring decades of continuous protection requires an anode material capable of maintaining exceptional electrical conductivity and catalytic activity without undergoing excessive degradation.

Engineering Performance: Raw Material Justification

Tiaano utilizes a substrate combination of pure Niobium (Nb) clad with high-purity electroplated Platinum (Pt) to achieve optimal performance:

·         Niobium (Nb) Core Substrate: Offers superior electrical conductivity and a remarkably high anodic breakdown voltage (exceeding 80V in chloride environments). This allows high-voltage ICCP operation without damaging the passive film if the platinum layer is localized.

·         Electrodeposited Platinum Coating: Provides exceptional electrocatalytic efficiency and near-zero consumption rates. The dense platinum layer minimizes operating overpotential while maximizing current output efficiency.

·         High Current Density Capability: Capable of operating effectively at significantly higher current output levels than traditional silicon-iron or graphite anodes.

Technical Specifications & Manufacturing Excellence

Tiaano integrates precision manufacturing processes in India to ensure every Platinised Rod meets rigorous international standards.

Stringent Quality Assurance (QA) Processes

Tiaano enforces meticulous Quality Control (QC) protocols throughout production. Every Platinised Rod undergoes substrate surface preparation, micro-thickness platinum plating inspection (using X-ray fluorescence analysis), thermal adhesion testing, continuous electrical continuity verification, and dimensional accuracy checks prior to export.

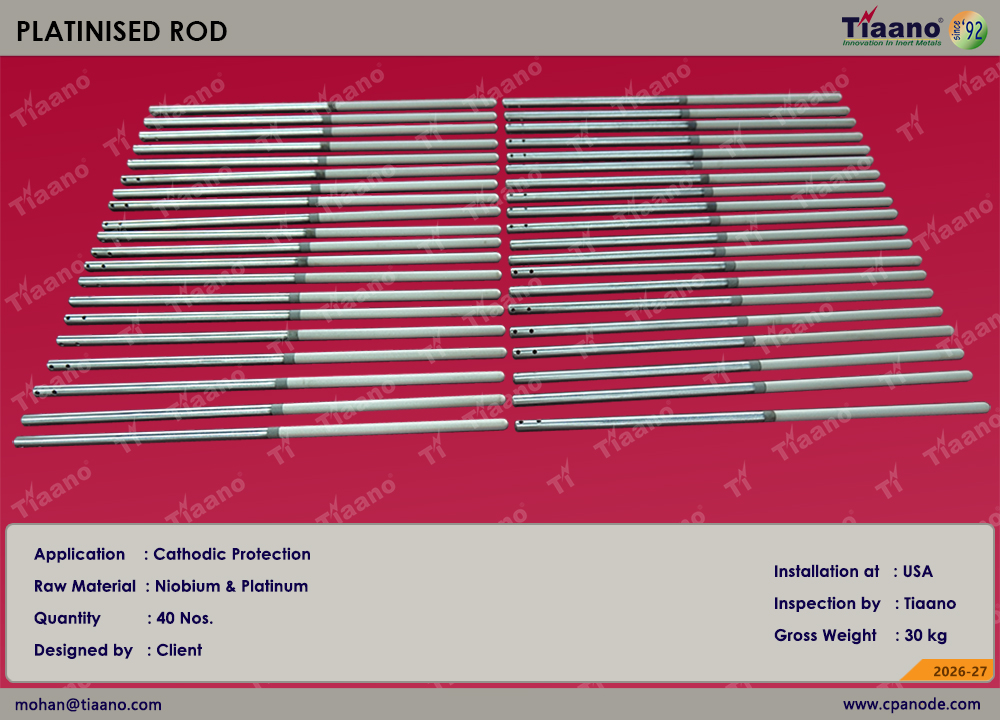

Applications Across Critical USA Infrastructure

Tiaano's platinized anodes deliver long-term protection across demanding industrial sectors in the USA:

1.   Offshore & Marine Infrastructure: Steel jetties, harbor piling, offshore platform legs, and submerged marine structures.

2.   Energy & Pipeline Networks: Internal pipe protection, condenser water boxes, power plant cooling intake systems, and deep-well groundbeds.

3.   Industrial Vessels: High-temperature processing vessels, storage tanks, and water treatment equipment requiring durable Cathodic Protection.

Partner with us

With decades of specialized electrochemistry expertise, Tiaano stands as a global leader in high-performance anode manufacturing. By pairing manufacturing capabilities in India with an international distribution footprint, Tiaano supplies world-class Platinised Rod systems to engineering firms, CP contractors, and asset owners across the USA and global markets.

To discuss your project requirements or request technical specifications:

·         Website:www.cpanode.com

·         Email:mohan@tiaano.com

Common Problems in Cathodic Protection and How Platinised Rod Solves Them

Cathodic protection systems are essential for preventing corrosion in pipelines, storage tanks, offshore structures, and industrial equipment. However, several recurring challenges can reduce system efficiency and increase long-term costs. A high-performance Platinised Rod offers practical solutions to these issues, delivering reliable current output and extended service life in demanding environments.

Common Challenges in Cathodic Protection Systems

Operators frequently encounter problems such as uneven current distribution, rapid anode consumption, high operating voltage, and premature failure of conventional anodes. In aggressive soil, seawater, or chemical environments, these issues can lead to incomplete protection, increased maintenance, and higher energy consumption. Selecting the right anode is critical for overcoming these limitations in modern cathodic protection installations.

How Platinised Rod Addresses These Problems

A Platinised Rod is manufactured using a Titanium substrate coated with a precise layer of Platinum. This combination provides excellent electrical conductivity, outstanding corrosion resistance, and stable electrochemical performance. In real-world cathodic protection applications, the Platinised Rod delivers consistent current output even under fluctuating conditions.

1.   Uneven Current Distribution: The uniform Platinum coating on a Platinised Rod ensures even current density along the active length, improving protection coverage and reducing the risk of localized corrosion in cathodic protection systems.

2.   Rapid Anode Consumption: Unlike consumable anodes, the Platinised Rod experiences minimal metal loss due to the durable Platinum layer, significantly extending service intervals and lowering replacement frequency in cathodic protection setups.

3.   High Operating Voltage: The low polarization characteristics of a Platinised Rod help maintain efficient current delivery at lower voltages, reducing energy costs and improving overall system performance in cathodic protection networks.

4.   Premature Failure in Harsh Conditions: The Titanium base combined with Platinum coating gives the Platinised Rod exceptional resistance to chemical attack and mechanical stress, making it highly reliable for long-term cathodic protection duty in both onshore and offshore environments.

Ti Anode Fabricators Pvt. Ltd. (Tiaano) specializes in the design and manufacturing of precision Platinised Rod anodes tailored for critical corrosion control applications. Their expertise in Platinum coating technology and quality inspection ensures consistent performance and dimensional accuracy for every product.

With extensive experience in inert metal electrodes, Ti Anode Fabricators Pvt. Ltd. delivers solutions that help industries achieve reliable cathodic protection with reduced maintenance and improved operational efficiency.

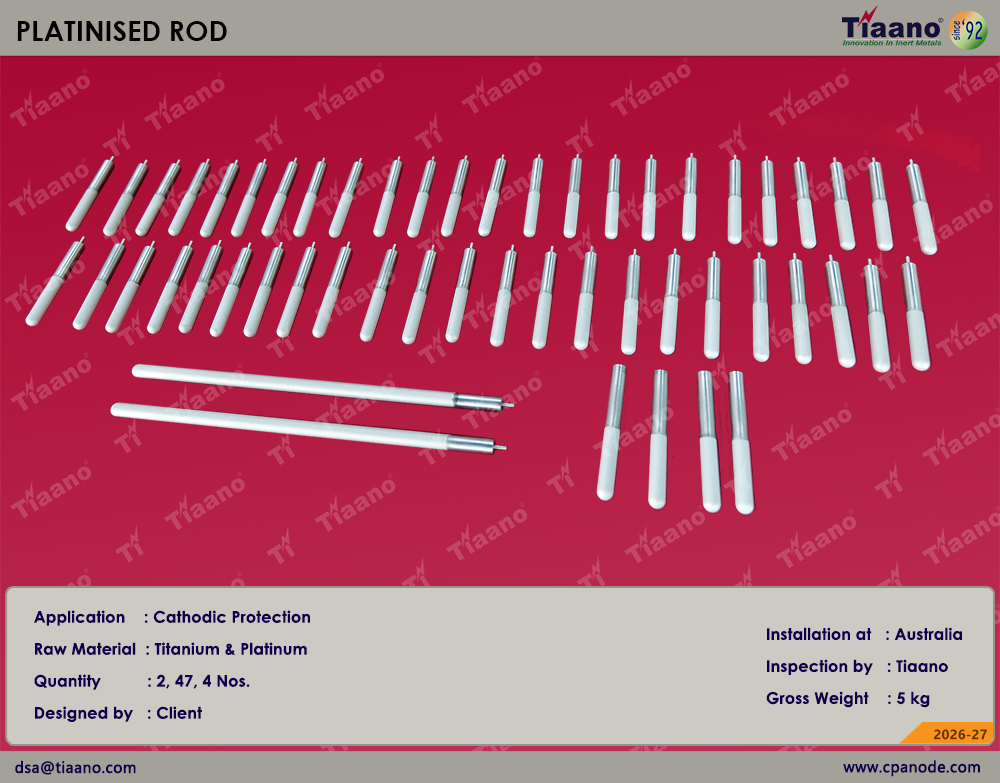

Proven Performance in Australian Installations

When installed in cathodic protection systems across Australia, the Platinised Rod has demonstrated excellent durability and stable output. Custom lengths and configurations allow precise matching to project requirements, ensuring optimal protection for pipelines, tanks, and marine structures.

Ready to solve common cathodic protection challenges? Contact Tiaano’s experts at dsa@tiaano.com or visit www.cpanode.com today. Discover how a precision-engineered Platinised Rod can enhance system reliability, reduce maintenance costs, and deliver long-term performance in your cathodic protection applications.

 Platinized titanium and MMO coated titanium rod anodes are to be designed & manufactured by Ti Anode Fabricators Pvt Ltd, Chennai, India. Application:  Deep & conventional ground beds. Jetties in fresh, brackish and salt-water electrolytes. Water tanks. Lock Gates. Intake Screens. Marine application.

Substrate: Solid Titanium and Niobium & Copper cored Ti. Catalyst for surface Coating: Platinum Mixed Metal Oxide.

platinised titanium and niobium probe / cantilever type anodes are also available for use in internal ICCP of process vessels such as pipes, condenser water boxes and heat exchangers where the interior is difficult to access and its space limited. such anodes are often mounted through the vessel shell, with the anode part of the probe extending into the vessel, and wire connections made to the probe on the exterior of the vessel.

Tiaano offer platinised and niobium cantilever (probe) anodes for this application (medium seawater, fresh water and brackish water) also tiaano offer platinised rods and tubes suitable for cantilever (probes).

the primary use of platinised titanium anodes is in the field of cathodic protection. the anodes are used in structures buried in soil and the steel exposed to marine environments such as oil and gas producing platforms, ships, oil well casing and jetties.

platinised titanium anodes synergistically combine the favorable electrochemical features of platinum (pt) with the corrosion resistance and other characteristics of titanium. they are anodes normally produced by the electrochemical deposition of a very thin layer of platinum metal onto a titanium substrate. these anodes operate as inert anodes with high durability and are preferred because they remain insoluble in common electrolytes.

FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com

 Platinized titanium and MMO coated titanium rod anodes are to be designed & manufactured by Ti Anode Fabricators Pvt Ltd, Chennai, India. Application:  Deep & conventional ground beds. Jetties in fresh, brackish and salt-water electrolytes. Water tanks. Lock Gates. Intake Screens. Marine application.

 Substrate: Solid Titanium and Niobium & Copper cored Ti. Catalyst for surface Coating: Platinum Mixed Metal Oxide

Platinized Titanium and Niobium probe / cantilever type anodes are also available for use in Internal ICCP of process vessels such as pipes, condenser water boxes and heat exchangers where the interior is difficult to access and its space limited. Such anodes are often mounted through the vessel shell, with the anode part of the probe extending into the vessel, and wire connections made to the probe on the exterior of the vessel.

 Tiaano offer Platinised Titanium and Niobium cantilever (probe) anodes for this application (medium seawater, fresh water and brackish water) Also Tiaano offer platinized Rods and Tubes suitable for cantilevers (probes).

The primary use of platinized titanium anodes is in the field of Cathodic Protection. The anodes are used in structures buried in soil and the steel exposed to marine environments such as oil and gas producing platforms, ships, oil well casings and jetties.

Platinized Titanium Anodes synergistically combine the favorable electrochemical features of platinum (Pt) with the corrosion resistance and other characteristics of titanium. They are anodes normally produced by the electrochemical deposition of a very thin layer of platinum metal onto a titanium substrate. These anodes operate as inert anodes with high durability and are preferred because they remain insoluble in common electrolytes.

 FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com

 Cathodic protection (CP) is a technique used to control the corrosion of a metal surface by passing positive connection in the anodes side and negative connection in the cathodes side.

Platinum is an excellent catalyst due to its high conductivity and low consumption rate. Platinum deposition made by electroplating method over a high corrosion resistance substrate. Platinum is a least reactive metals that has remarkable resistance to corrosion, even at high temperatures.

Cathodic protection is a method for preventing corrosion on submerged and underground metallic structures. Cathodic protection is one of the most effective method for preventing corrosion on a metal surface.

Platinized cantilever anode is used for protecting pipeline internals, suction and condenser box internal for 30 years and more by applying DC current from rectifier. Cantilever anode is coated with platinum or MMO (mixed metal oxide).

The cathode will be protected and could be monitor by the reference electrodes.

Platinized titanium rods are usually used in cantilever anode. Normally titanium is well known for its high resistance to corrosion both water and chemical media but titanium is the poor electricity conductor. So we use platinum/ MMO plating/ Coating to increase the conductivity.

Application:

• Heat exchangers
• Pumps
• Valves
• Pipes
• Marine application

For Enquiries please drop your email at dsa@tiaano.com|dsasupport@tiaano.com

Platinized titanium and MMO coated titanium rod anodes are to be designed & manufactured by Ti Anode Fabricators Pvt Ltd, Chennai, India. Application:  Deep & conventional ground beds. Jetties in fresh and brackish.

Substrate: Solid Titanium and Niobium & Copper cored Ti. Catalyst for surface Coating: Platinum Mixed Metasalt-water electrolytes. Water tanks. Lock Gates. Intake Screens. Marine application Oxide

Platinized Titanium and Niobium probe / cantilever type anodes are also available for use in Internal ICCP of process vessels such as pipes, condenser water boxes and heat exchangers where the interior is difficult to access and its space limited. Such anodes are often mounted through the vessel shell, with the anode part of the probe extending into the vessel, and wire connections made to the probe on the exterior of the vessel.

 Tiaano offer Platinised Titanium and Niobium cantilever (probe) anodes for this application (medium seawater, fresh water and brackish water) Also Tiaano offer platinized Rods and Tubes suitable for cantilevers (probes).

The primary use of platinized titanium anodes is in the field of Cathodic Protection. The anodes are used in structures buried in soil and the steel exposed to marine environments such as oil and gas producing platforms, ships, oil well casings and jetties.

Platinized Titanium Anodes synergistically combine the favourable electrochemical features of platinum (Pt) with the corrosion resistance and other characteristics of titanium. They are anodes normally produced by the electrochemical deposition of a very thin layer of platinum metal onto a titanium substrate. These anodes operate as inert anodes with high durability and are preferred because they remain insoluble in common electrolytes.

FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com

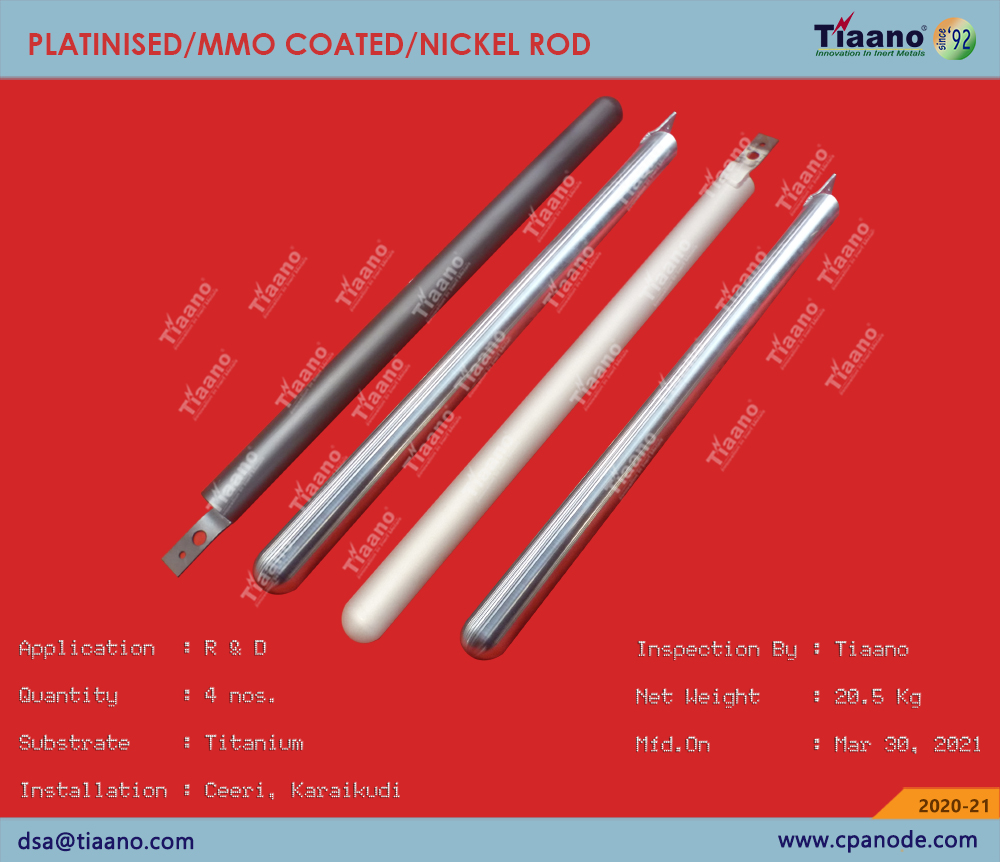

We, Ti anode fabricators Pvt. Ltd., is familiar in manufacturing and supplying of MMO & Platinum plated Titanium and Niobium anodes for Impressed Current Cathodic Protection (ICCP).

Platinized Nickel Rod anodes are planned with explicit platinum material (Pt.) which makes the anodes correspondingly stable for a long time. Tiaano designs and production platinised Nickel Rod anodes with various aspects and plating thicknesses. Tiaano have the factory to do platinum plating 0.5 micron to 20 micron thick by the course of Electro affidavit.

Nickel is slow to oxidise at room temperature and hence it is considered to be naturally corrosion resistant. High-performance nickel alloys are also resistant to reducing media, aggressive chemicals and seawater. Corrosion-resistance properties vary depending on the Grade chosen for your pipes.

Long life, correspondingly steady and effortlessly created into any shape: When utilized in the plating system, aspect of the lead anodes are changing because of the deficiency of the lead oxide which is framed on the anode during activity - it leads surface region is getting imploded. Likewise bigger lead anodes can extend under their own weight. While titanium anodes are correspondingly steady all through their working life and can without much of a stretch be fabricated, even in complex shapes and lengths, up to 4m. Thusly, formed anodes can be fabricated precisely to permit steady plating to little resilience’s, frequently making a further sharpening step pointless.

Energy reserve funds with moulded anodes and little anode/cathode distances: Small terminal holes lessen electrical obstruction misfortunes in the plating shower and produce energy investment funds. On account of lead anodes, which can't be framed as precisely as a lattice, opposition misfortunes bring about shower warming, requiring further energy for cooling. In this manner, platinised titanium anodes can give energy reserve funds both in warming and cooling which, thusly, permits the plating science to be more straightforward to oversee and keep up with.

FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com

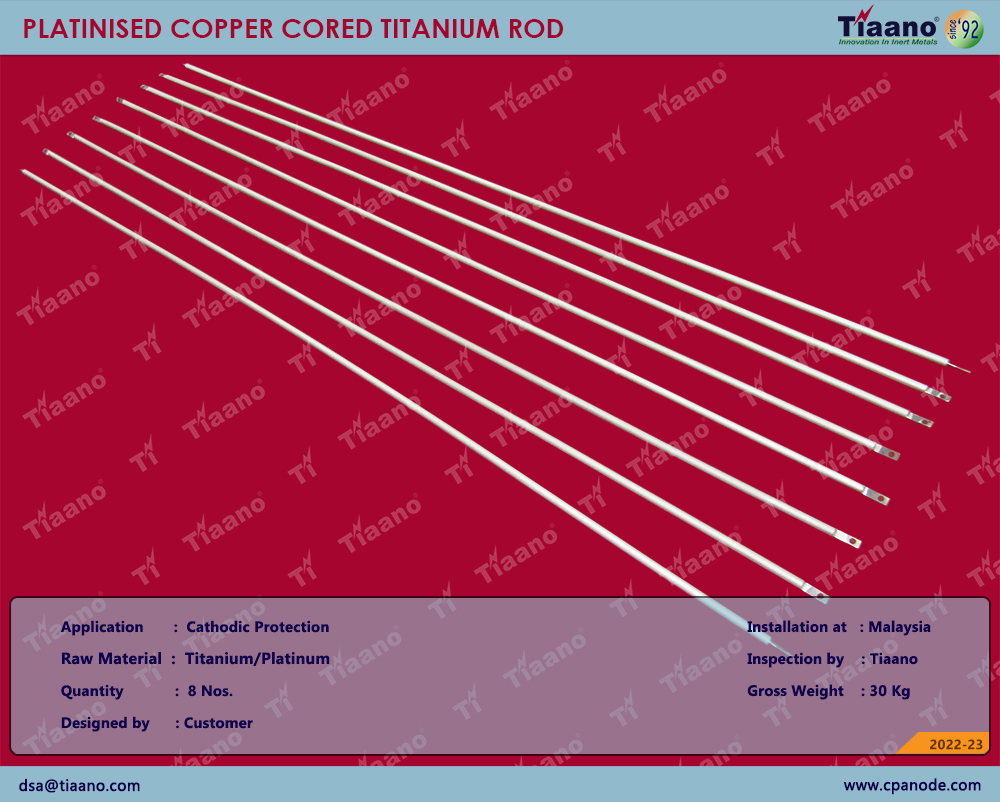

PLATINISED COPPER CORED TITANIUM ROD

Platinized titanium anodes are extensively used in electrolytic processes. They have successfully replaced lead anodes in electroplating applications due to their lower consumption, dimensional accuracy, ability to form precise deposit thicknesses on desired geometric shapes, predictable plating chemistry and ease of maintenance. These anodes can be designed and formed with various geometries based upon the parts to be electroplated.

Platinum on titanium anodes are highly preferred anodes for electrodeposition of copper, chromium, platinum, nickel, palladium and gold.

Platinized titanium anode by adopting thermal decomposition process to get a dense wear-resistant layer of platinum coating. The anode surface is modified to improve adhesion of platinum and to significantly improve uniformity of coating thickness, also reduce the coating porosity imparting greater acid resistance to the anode. This platinum coated titanium anode can be fabricated into bar, rod, sheet, mesh and other customized shape to meet your special needs.

Because of its high conductivity and low consumption rate, Platinum is an excellent anode material. Due to its high cost, Platinum is made practical for use by electroplating a thin layer over a high corrosion resistance substrate. Since Titanium, Niobium and Tantalum substrates have the ability to form an insulating oxide film under anodic conditions, they are commonly used as anode in ICCP (impressed current cathodic protection anode). Among them, Titanium is less expensive; however, it has a much lower breakdown potential than Niobium or Tantalum. The titanium oxide breaks down at anodic potentials in the 12 V range.

Advantages of platinized titanium anodes

Low consumption rate and high current density

Voltages in excess of 10 Volts will result in severe pitting of the titanium core causing premature failure

For Enquiries please drop your email at dsa@tiaano.com|dsasupport@tiaano.com

Cathodic protection (CP) is a technique used to control the corrosion of a metal surface by passing positive connection in the anodes side and negative connection in the cathodes side.

Platinized cantilever anode is used for protecting pipeline internals, suction and condenser box internal for 30 years and more by applying DC current from rectifier. Cantilever anode is coated with platinum or MMO (mixed metal oxide). The cathode will be protected and could be monitor by the reference electrodes.

Platinized titanium rods are usually used in cantilever anode. Normally titanium is well known for its high resistance to corrosion both water and chemical media but titanium is the poor electricity conductor. So we use platinum/ MMO plating/ Coating to increase the conductivity.

Advantages of Platinum coating:

•          Low consumption rate that conserves precious platinum.

•          Corrosion resistance ensures durability with easy maintainability.

•          Light weight, as well as favorable current distribution in electroplating.

•          Favorable dimensional stability.

  Recently supplied platinum plated cantilever for our Indonesia client

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

Pinterest, Instagram, Facebook, Twitter

Platinum is an excellent anode material due to its high conductivity and low consumption rate. Due to its high cost, Platinum is made practical for use by electroplating a thin layer over a high corrosion resistance substrate. Since Titanium, Niobium and Tantalum substrates are having the ability to form an insulating oxide film under anodic conditions, they are all most commonly used as anode in ICCP.

A platinized titanium anode is simply a titanium anode coated with platinum. These anodes act as an inert anodes and are non-consumable and long lasting. These anodes are insoluble in electrolyte where electrolysis is present. Platinized Titanium Rod are usually used in cantilever anode which is used for protecting pipeline internal, pump internal & condenser box internal for 30 years and more by applying DC current with transformer rectifier.

Applications:

• Deep & conventional ground beds.
• Jetties in fresh, brackish and salt-water electrolytes.
• Water tanks.
• Lock Gates.
• Intake Screens.
• Marine application
