Anode Positioning and Structural Design: Understanding MMO Coated Cantilever Systems

In engineered corrosion control, anode positioning and structural arrangement play an important role in achieving effective protection. When conventional anode configurations are unsuitable for specific installation requirements, MMO Coated Cantilever systems offer an alternative design approach for specialized Cathodic Protection applications.

The Importance of Cantilever Anode Design

A cantilever arrangement allows an anode to be positioned using a supporting structural configuration, helping accommodate particular mounting and installation requirements. In Cathodic Protection systems, appropriate anode positioning is essential for achieving the intended current distribution and maintaining suitable electrical connections.

The MMO Coated Cantilever combines a titanium substrate with a Mixed Metal Oxide (MMO) coating. Titanium provides a corrosion-resistant structural foundation, while the MMO coating serves as the electrochemically active surface. This combination makes the product suitable for specifically engineered impressed-current Cathodic Protection systems.

Structural Design and Material Selection

The structural integrity of a cantilever anode depends on suitable material selection, fabrication accuracy and connection design. Titanium offers a favourable combination of corrosion resistance and mechanical properties for electrochemical applications. The MMO coating provides the functional anode surface, making coating quality and substrate preparation important manufacturing considerations.

Electrical connections and supporting components also require careful attention. Proper cable integration, secure connections and appropriate mounting arrangements contribute to installation reliability. Selecting the right MMO Coated Cantilever involves evaluating the operating environment, installation geometry, electrical requirements and intended protection objectives.

Manufacturing Expertise for Reliable Performance

Manufacturing consistency is essential when producing specialized anodes for industrial Cathodic Protection systems. From titanium component preparation and precision fabrication to MMO coating application and final inspection, every production stage contributes to the finished product's quality.

Tiaano, an Indian manufacturer of titanium and MMO-based electrochemical products, brings its manufacturing expertise to the development of MMO Coated Cantilever solutions. Its focus on material selection, fabrication processes and product quality supports the requirements of customized industrial anode applications.

Supporting Engineered Cathodic Protection Solutions

Every Cathodic Protection installation presents different structural, electrical and environmental considerations. Choosing a suitable anode configuration requires coordination between system design, installation conditions and material performance. A properly engineered MMO Coated Cantilever can help address specialized mounting and positioning requirements within an appropriately designed protection system.

Looking for a reliable MMO Coated Cantilever manufacturer in India? Partner with Tiaano for titanium and MMO anode solutions tailored to your industrial Cathodic Protection requirements. Contact our technical team to discuss your project and product specifications.

Website:www.cpanode.com Email: mohan@tiaano.com

REFERENCE ELECTRODE

A reference electrode must have specific electrical, physical and chemical properties. It must facilitate the measurement of accurate pipe/soil/reference electrode potentials on pipelines. It must ideally have a stability that is sustainable for years. For this to occur it should not be polarized by the very low electrical current that will flow in a measurement circuit. The potential should be measured with a high impedance multi-meter or voltmeter.

Reference electrode allows you to measure the potential of the working electrode without passing current through it while counter (auxiliary) electrode allows you to pass current. If oxidation occurs at the working electrode, reduction using the same magnitude of current is sustained at the counter electrode and hence there is no current flow between working and reference electrode(high input impedance) enabling us to follow changes in working electrode potential accurately. This is not possible in a two electrode system although we can get crude values by using certain types of electrodes which can act simultaneously as working and reference electrode.

Tiaano supplying reference electrodes like zinc, AgAgcl for the pipeline, jetty etc.,

Our recent supply  of MMO Coated Cantilever anode and reference electrode to our Calcutta customer:

 For Enquiries please drop your email at dsa@tiaano.com|dsasupport@tiaano.com

Reference electrodes are generally implemented for the purpose of monitoring the anode in cathodic protection of buried or immersed metallic structures. It is made of high-purity of alloys, ensuring accuracy and stability of potential measurements.

The electrode frame is made of stainless steel, coated carbon steel or Rubber. The electrode can be designed to fix in the structure. By means of specifically designed supports.

These Reference Electrode implements a major usage in the cathodic protection System. Reference Electrode are in different shapes like disc, rod and strip with different dimension, which is also installed in the heat exchanger to monitor the current supply of cantilever anodes.

Cantilever anode is used for protecting pipeline internals, suction and condenser box internal for 30 years and more by applying DC current with transformer rectifier.

Normally titanium is well known for its high resistance to corrosion both water and chemical media but titanium is the poor electricity conductor. So we use platinum/ MMO plating/ coating to increase the conductivity.

For Enquiries please drop your email at dsa@tiaano.com|dsasupport@tiaano.com

Reference electrodes are generally implemented for the purpose of monitoring the anode in cathodic protection of buried or immersed metallic structures. It is made of high-purity of alloys, ensuring accuracy and stability of potential measurements.

The electrode frame is made of stainless steel, coated carbon steel or Rubber. The electrode can be designed to fix in the structure. By means of specifically designed supports.

These Reference Electrode implements a major usage in the cathodic protection System. Reference Electrode are in different shapes like disc, rod and strip with different dimension, which is also installed in the heat exchanger to monitor the current supply of cantilever anodes.

Cantilever anode is used for protecting pipeline internals, suction and condenser box internal for 30 years and more by applying DC current with transformer rectifier.

Normally titanium is well known for its high resistance to corrosion both water and chemical media but titanium is the poor electricity conductor. So we use platinum/ MMO plating/ coating to increase the conductivity.

For Enquiries please drop your email at dsa@tiaano.com|dsasupport@tiaano.com

MMO Coated cantilever/disc anode are used to protect the gigantic pump internals, pipe line internal and condenser box where the sea water/ oil pass through in it. These anodes are used to protect the cathode what we have given negative from erosion and corrosion with DC power supply called as impressed current cathodic protection (ICCP)

We, Tiaano supplying various types of cantilever/disc anodes with MMO coating as well as platinized coating as per the customer requirement.

Our recent supply to Spain:

MMO Coated rod & MMO Coated tube – Spares for Cantilever anode and Tubular anode for cathodic protection:

We design, manufacturing and supply of MMO & Platinum plated Titanium and Niobium anodes for Impressed Current Cathodic Protection (ICCP).  According to the customer’s requirement we manufacture the anodes from copper cored titanium and copper cored niobium too.   Our anodes are gone through the accreditation test by M/s. TWT, London as per NACE standard TMO 294-200.  Our MMO coated / Platinized anodes are specified as…

Ø  Made from seamless Titanium tubes:  Single or multi string anodes, Cantilever and probe anodes, Civil probe or discrete tube anodes, Liner loop tube anodes, Tube anodes.

Ø  Made from titanium / niobium or their copper cored rods: Cantilever anodes, Heater probe anodes, Canister anodes, Suspended rod anodes, Rod anodes.

Ø  Made from titanium and niobium wires: Canister anodes, Expanded spring anodes, Anode flex, Piggy back anodes, Linear loop anodes, Wire anodes.

Ø  Made from Titanium and Niobium sheets:  Strip canister anodes, Strip anodes, Elliptical anodes, Disc anodes, Solid ribbon anodes, Pyramid anodes, Conductor bar.

Ø  Made from Titanium expanded metal mesh: Mesh canister anodes, Ribbon mesh anodes, discrete anodes, Star guard anodes, Anode mesh.

Ø   Reference electrodes from MMO coated titanium rods and zinc cast rods.

Tiaano supplying all cathodic protection anodes as well as spares of CP anodes such as mmo coated & platinized titanium rod, tube, mesh, plate etc., in larger quantity to our regular customers all over the world.

Our recent supply to our Indonesian customer:

MMO Coated cantilever & Zinc Reference electrodes

MMO Coated cantilever anode are used to protect the surface of gigantic pump internals and condenser box where the sea water pass through in it. These anodes are use to protect the pump internals from erosion and corrosion with impressed current.

Reference electrodes are used in locations where a constant, stable reference where our anodes are installed with constant potential rectifiers.

Normally we can use wide variety of reference electrodes like zinc, silver chloride or copper sulfate reference electrodes for pump internal, condenser water box/vessel applications to monitor the cathodic protection anodes activeness.

Tiaano supplying MMO & platinum plated cantilever anodes and zinc reference electrodes for cathodic protection.

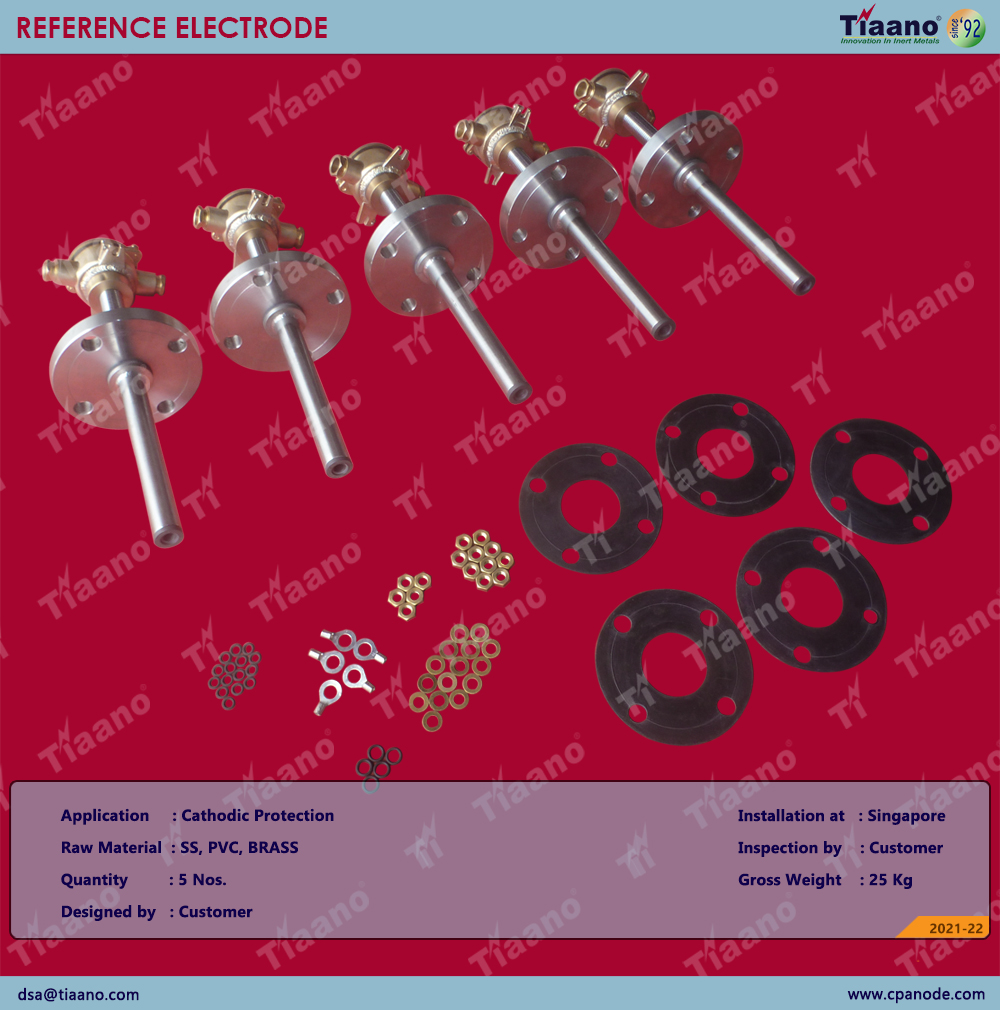

Recent supply for our Singapore client
