Impressed Current Cathodic Protection (ICCP) Anodes

MMO Coated / Platinized Titanium & Niobium Anodes

MMO COATED MESH DISCRETE FOR CATHODIC PROTECTION

clock September 19, 2023 10:05 by author admin

The invention relates to the field of cathodic protection of reinforced concrete structures, and in particular to a design of discrete anode for cathodic protection suitable for being installed inside holes or slits made in the concrete. The anodes commonly used for the cathodic protection of reinforced concrete consist of a titanium substrate coated with transition metal oxides or other types of catalysts for anodic oxygen evolution.

Discrete anodes are not suitable for all applications, especially for thin concrete element or where the reinforcement is randomly spaced within a structure. The main area of application of discrete anodes would be thick reinforced concrete elements, such as beams, head stocks or piles in tidal/ splash zones where the application of ribbon anodes leads to grout acidification in most cases. Having in mind the long term durability of the cathodic protection components installed permanently in concrete and the importance of delivering a CP system with low maintenance.

FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com

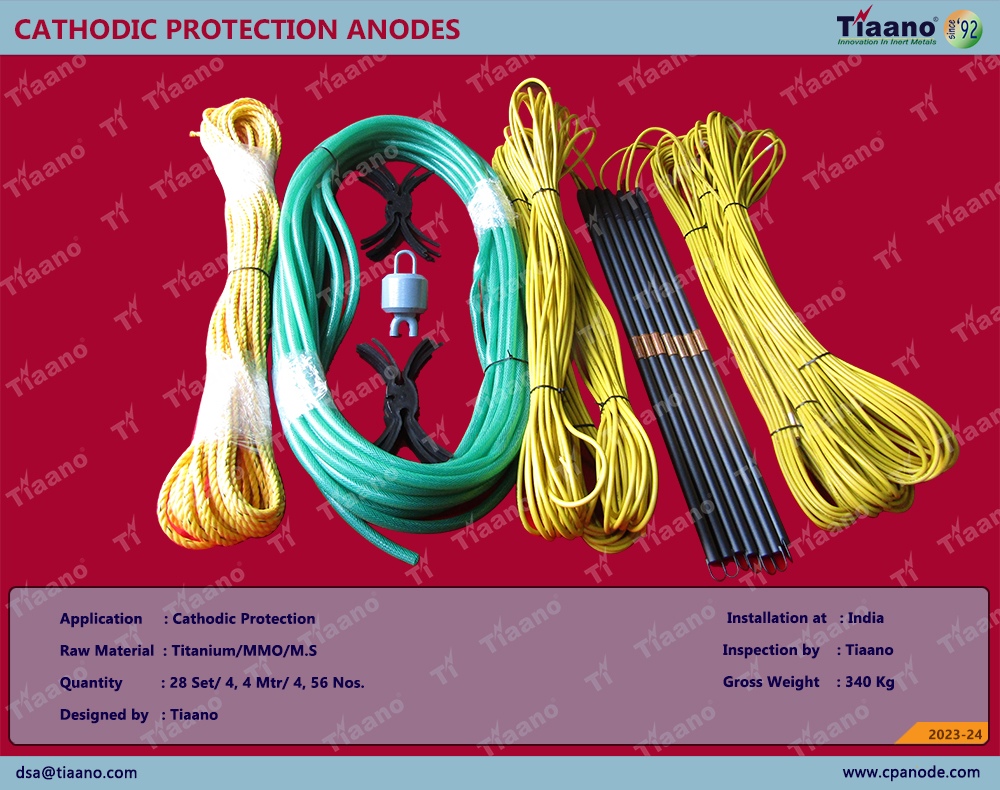

Tiaano’s MMO Coated Titanium Tubular String, Vent Pipe and PP Centralizer for Corrosion Protection

clock August 7, 2023 02:45 by author admin

Corrosion is a natural process that converts a refined metal into a more chemically stable form such as oxide, hydroxide, carbonate or sulfide. It is the gradual destruction of materials by chemical or electrochemical reaction with their environment. Corrosion can be prevented by eliminating the oxygen or the positively charged hydrogen ions.

MMO coated tubular string anode are used to protect the pipe lines which is installed horizontal bed as well as vertical deep well with multi string /single string based on several design and field condition factors including current distribution requirements for different applications like Sea water, brackish water, sand etc.

These anodes connected to a DC power source, often a transformer-rectifier connected to AC power. In the absence of an AC supply, alternative power sources may be used, such as solar panels, wind power or gas powered thermoelectric generators. These tubular anodes are used to protect the pipelines from corrosion and rust.

Advantages:

  • Lightweight/Durable
  • High current output
  • Low cost
  • Dimensionally stable
  • High cost performance

For Enquiries, please drop your email at dsa@tiaano.com|dsasupport@tiaano.com





MMO COATED MESH DISCRETE FOR CATHODIC PROTECTION

clock June 7, 2023 16:10 by author admin

The invention relates to the field of cathodic protection of reinforced concrete structures, and in particular to a design of discrete anode for cathodic protection suitable for being installed inside holes or slits made in the concrete. The anodes commonly used for the cathodic protection of reinforced concrete consist of a titanium substrate coated with transition metal oxides or other types of catalysts for anodic oxygen evolution.

Discrete anodes are not suitable for all applications, especially for thin concrete element or where the reinforcement is randomly spaced within a structure. The main area of application of discrete anodes would be thick reinforced concrete elements, such as beams, headstocks or piles in tidal/ splash zones where the application of ribbon anodes leads to grout acidification in most cases. Having in mind the long term durability of the cathodic protection components installed permanently in concrete and the importance of delivering a CP system with low maintenance.



 FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com





MMO COATED TUBULAR STRING FOR CATHODIC PROTECTION

clock May 11, 2023 10:58 by author admin

We, Ti Anode Fabricators Pvt. Ltd., developed an extremely strong and electrically low resistance centre crimp connection, which ensures the lowest possible electrical resistance (less than 1.0 Milli Ohm) between the cables and anode tube. The Platinum group Mixed Metal Oxide coating is a crystalline electrically conductive coating that activates and enables a titanium substrate to function as an anode. Whether operating in fresh water, seawater, soil, or mud. MMO Coatings are extremely stable even in very low pH environments.

MMO titanium tubular anodes are coated with mixed metal oxide that has an extremely low consumption rate measured in milligrams per year. Unlike other types of anodes the consumption rate of MMO anode is negligible with the dimensions of the anode element remaining virtually unchanged during the operational service life of the anode. As a result, the power required to impress current will remain the same.

Cathodic protection system is a technique used to control a corrosion of a metal surface by making it the cathodic side of an electrochemical cell. Cathodic protection is an old and effective system that prevents forming rust in metal and helps in corrosion resistant. Corrosion  can be prevented by eliminating the oxygen or the positively charged hydrogen ions.

MMO_COATED_TUBULAR_STRING



MMO Coated Canister for Impressed Current Cathodic Protection

clock March 30, 2023 16:26 by author admin



Ti Anode Fabricators Pvt Ltd., manufactures CPCC Canister Anode with their in-house facilities in India, for Impressed current Cathodic protection application. Using following alternative anode combinations are been supplied based on the customer’s interest.

Titanium expanded mesh with Ti’s MMO coating.

Titanium wire with Ti’s MMO coating.

Titanium expanded mesh with Ti’s Platinum plating.

Titanium wire with Ti’s Platinum plating.

Niobium wire with Ti’s MMO coating.

Niobium wire with Ti’s Platinum plating.

Application:

􀂾 Shallow vertical and horizontal surface ground beds.

􀂾 Underground storage tanks.

􀂾 Aboveground storage tanks.

􀂾 Pipelines.

Advantages over Silicon - Iron anodes:

Twice the life

Unbreakable

Lighter weight

Easier to install

Narrower trench

Easy to centralize

Reduce excavation and drilling cost.

Material Of Construction:

Canister: Galvanized steel tube

Substrate: Titanium, ASTM B 265 or 348 Gr.1

Niobium, ASTM B

Catalyst: MMO or Pt

Cable: XLPE/PVC, EPR/CSPE, KYNAR/HMWPE.

Cable ~ anode connection: CPCC equal to LIDA.



Platinum Plated Titanium Cantilever Anode for Pipeline Protection

clock March 28, 2023 10:42 by author admin

Cathodic protection (CP) is a technique used to control the corrosion of a metal surface. Impressed current systems utilize an external power source that provides protective current to mitigate corrosion activity. Permanently installed anodes and the embedded reinforcing steel are connected to an AC/DC rectifier that forces the steel to a cathodic or protective condition. Impressed current systems provide a high level of protection but should be properly monitored and maintained to ensure long-term performance.

Platinized cantilever anode is used for protecting pipeline internals, suction and condenser box internal for 30 years and more by applying DC current with transformer rectifier. We use platinum/ MMO plating/ coating to increase the conductivity.

Platinum Plated Cantilever

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

Pinterest, Instagram, Facebook, Twitter



MMO COATED MESH DISCRETE FOR CATHODIC PROTECTION

clock March 20, 2023 11:20 by author admin



The invention relates to the field of cathodic protection of reinforced concrete structures, and in particular to a design of discrete anode for cathodic protection suitable for being installed inside holes or slits made in the concrete. The anodes commonly used for the cathodic protection of reinforced concrete consist of a titanium substrate coated with transition metal oxides or other types of catalysts for anodic oxygen evolution.

Discrete anodes are not suitable for all applications, especially for thin concrete element or where the reinforcement is randomly spaced within a structure. The main area of application of discrete anodes would be thick reinforced concrete elements, such as beams, headstocks or piles in tidal/ splash zones where the application of ribbon anodes leads to grout acidification in most cases. Having in mind the long term durability of the cathodic protection components installed permanently in concrete and the importance of delivering a CP system with low maintenance.

FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com

 mmo_coated_mesh_discrete



















MMO Coated Titanium Rubberized Disc for Corrosion Free System

clock January 11, 2023 10:32 by author admin

Cathodic protection (CP) is a technique used to control the corrosion of a metal surface.The leading anti-corrosion character, outstanding physical & mechanical properties, uniform current distribution characters of titanium, niobium - its Platinised anodes and Mixed Metal Oxide coated anodes are strongly recommended for Impressed Current Cathodic Protection (ICCP) application.

Impressed Current Cathodic Protection systems are the ultimate solution for all corrosion problems to protect the metallic structure for long time and are recognized as a superior alternative to sacrificial anode systems which require frequent replacement. Impressed current cathodic protection systems are preferred by ship owners because they reduce fuel cost and maintenance.

MMO/Platinised Disc, Elliptical & Strip Anodes are developed specifically for protection of Dam and Navigation lock gates. Since our disk, elliptical & strip anodes are designed to operate in fresh, brackish and seawater environments - used in other suitable applications includes marine structures, water tanks and vessels. With an optional primary seal spacer gasket, it can be used on the inside of pipes, pumps, water tanks or other curved surfaces too.

Disc anodes can be installed in walls of ship hulls, condenser/water box, pump internal/external suction and discharge to protect for longer years. It will be insulated with rubberized mold to protect from erosion. When using MMO coated rubberized disc anode to protect the ship hull from sea water corrosion, external current are applied to convert high potential anodic sites on a ship hulls to low-potential cathodic sites. This ensures that ship hull surface is protected from corrosion.

Rubberised disc

Applications:

  • Marine Structures.
  • Pipeline Internals.
  • Condenser water box.
  • Water intake.

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

insta fb twitter pinterest



MMO Coated Titanium Rod for Cathodic Protection

clock November 17, 2022 10:45 by author admin

We Tiaano design, manufacture and supply MMO & Platinum plated Titanium and Niobium anodes for Impressed Current Cathodic Protection (ICCP).  According to the customer’s requirement we manufacture the anodes from copper cored titanium and copper cored niobium too.   Our anodes are gone through the accreditation test by M/s. TWT, London as per NACE standard TMO 294-200.

Mixed Metal Oxide (MMO) coated titanium rod and Platinized Titanium rod anodes are to be designed & manufactured by Ti Anode Fabricators Pvt. Ltd, Chennai, India. Platinum is one of the noble group of metals also a precious metal, which has excellent catalyst materials. Platinum is conductive, chemically stable and highly resistant to oxidation and corrosion. It has a silvery-grey colour and can be polished to a variety of products.

MMO Coated Titanium Rod is usually used in cantilever anode which is used for protecting pipeline internal, pump internal & condenser box internal for 30 years and more by applying DC current with transformer rectifier.

         rod         mmorod

For more details visit these links:

www.cpanode.com,www.tiaanostore.in,www.tiaano.com

Follow us on:

Pinterest, Instagram, Facebook, Twitter



PLATINISED TITANIUM ANODE (ACWP) FOR CATHODIC PROTECTION

clock August 22, 2022 11:31 by author admin



Platinized titanium anode by adopting a thermal decomposition process to get a dense wear-resistant layer of platinum coating. They can modify the anode surface to improve the adhesion of platinum and the uniformity of coating thickness.

 Platinum titanium is a platinum metal oxide or platinum layer-coated on a titanium substrate. It is non-consumption, durable, and insoluble in the electrolyte.  We can use platinum titanium anode for cathodic protection and electroplating.

 Platinum is a highly valued metal, and it is widely used in jewelry, engines, and industrial machinery.

We can customize the anode with different shapes such as mesh, rod, sheet, tube to suit various application areas.

Platinized titanium anode has both high anti-corrosion qualities and excellent platinum electrochemical performance. It is more advantageous as compared to other lead anode and soluble electrodes.

  • Flexibility to meet various user needs
  • Produce complex shape of the anode
  • Energy-saving
  • Lightweight (especially the mesh grid anode)
  • Longer working life under higher current density
  • Firm titanium structure, less deformation
  • Second platinized allowed
  • Uniform deposit, final products with high quality

 FOR ENQUIRES PLEASE DROP YOUR EMAIL AT dsa@tiaano.com/dsasupport@tiaano.com





PLATINISED_TITANIUM_ANODE_(ACWP)_FOR_CATHODIC_PROTECTION
